Scrap & Handling Attachment

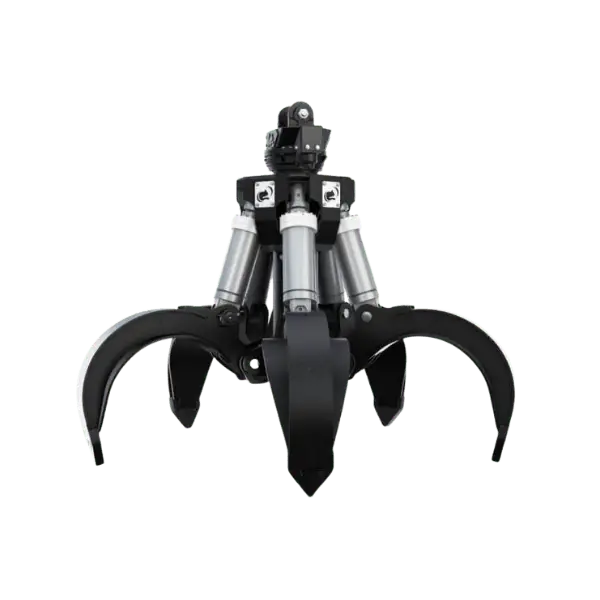

Heavy Duty Orange Peel Grapple Systems
Engineered for high-volume scrap, waste, and bulk material handling, the Orange Peel Grapple B utilizes NM500 wear-resistant steel for a lightweight yet exceptionally durable build. Designed for high efficiency and smooth continuous duty across 5 to 35-ton excavators.
Key Technical Features
-
NM500 Wear-
Resistant Steel
Combines lightweight structure with maximum wear and tear resistance.
- 42CrMo Alloy Steel Pins
Built-in internal oil passages for superior strength and joint toughness.
- 360° Swiss Rotary Motor
Optional imported rotation motor with vertical system and integrated braking.
- HALLITE Oil Seals
Imported seals and honing pipe cylinders ensure long operational service life.
- Multi-Tine Configuration
Available in 5 to 6 tine configurations for optimized grabbing capability.
Technical Specifications
| Item / Model | Unit | JSL04 | JSL06 | JSL08 | JSL010 |
|---|---|---|---|---|---|
| Suitable Excavator | Ton | 5 - 11 | 12 - 18 | 18 - 25 | 26 - 35 |
| Weight | Kg | 510 | 1200 | 1560 | 1800 |
| Max Jaw Open | mm | 1750 | 1780 | 1950 | 2180 |
| Height of Closed Grapple | mm | 1440 | 1540 | 1650 | 1860 |
| Set-Up Pressure | bar | 260 | 260 | 260 | 260 |
| Operating Flux | L/min | 20 - 70 | 60 - 120 | 60 - 120 | 60 - 120 |
| Cylinder Volume | L | 400 | 600 | 800 | 1000 |
| Number of Tines | pcs | 5 - 6 | 5 - 6 | 5 - 6 | 5 - 6 |
